Corrugated Sidewall Rubber Conveyor Belt
Corrugated Sidewall Rubber Conveyor Belt Corrugated Sidewall rubber Conveyor Belt

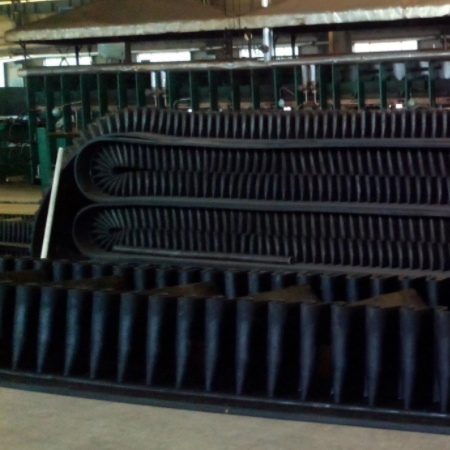

Corrugated Sidewall Conveyor Belt

Corrugated sidewall conveyor belt is composed of three parts including base band, retaining band and diaphragm. The guard edge is used to prevent material from slipping and falling. For the convenience of bypassing the drum, the edge of the file is designed to be corrugated. The role of diaphragm is to support the material, in order to achieve large Angle conveying, using T TC type. The baffle and diaphragm are connected to the base band by a secondary vulcanization method with high bonding strength.

Depending on customers’ request, our sidewalls and cleats can be reinforced with diagonal fabric and bolted together. We normally use XE-layer reinforcement; However metal breaker with cross rigid character can also be applied in various specifications. We offer a large portfolio of possible combinations of cleats and sidewalls in height up to 500mm.

Applications

This belt can be used for conveying bulk materials with a dip Angle of 0° ~ 90°. It solves the conveying Angle that the pattern belt and ordinary flat belt cannot reach, increases the lifting height, and has the advantages of shortening the transportation distance of the conveyor, reducing the cost and saving manpower and material resources.

Waveform sidewall rubber conveyor belt can now cover all industries, whether mining, chemical, building materials, metallurgy, steel and other industries have its figure. Its existence can be said to provide convenience for transportation, to solve a series of problems such as high cost of large , easy to spread materials, can not be completely vertical transportation. sidewall rubber conveyor belt can be completely realized, and a conveyor belt can realize multiple Angle conversion. Like 30 degrees on the bottom, 90 degrees on the top.

Advantages

Corrugated sidewall conveyor belts has the following advantages:

  • Save space, it does not need to occupy too much place is not very big , but occupies less area, because it is the Angle of transport.
  • Do not occupy too much capital, small investment, less cost, the production of high economic benefits!
  • Easy installation, simple maintenance, made into a ring is very convenient to install, go back directly with the crane can be lifted!
  • Usually only regular inspection and maintenance, timely repair of falling guard and partition.

Parameter Relationship

Base Belt Width Sidewall Height Cleat Sidewall Effective Base Belt Width Empty Belt Width
Height Bottom Width
(TC)
300 40 35 25 180 35
60 55 50 120 40
80 75
400 60 55 50 180 60
80 75
100 90
500 80 75 50 250 75
100 90
120 110
650 100 90 50 350 100
120 110
160 140 75 300
800 120 110 50 460 120
160 140 75 410
200 180
1000 160 140 75 550 150
200 180
240 220
1200 160 140 75 690 180
200 180
240 220
300 260 100 640
1400 200 180 75 830 210
240 220
300 260 100 780
400 360

Cover Grade

We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Standards Cover Rubber Adhesion
Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
DIN22102 MPa % mm3 N/mm N/mm N/mm
(≤1.5mm) (>1.5mm)
DIN22102-W 18 400 90 3.5 4.5 5
DIN22102-X 25 450 120
DIN22102-Y 20 400 150
DIN22102-Z 15 350 250
Standards Cover Rubber Adhesion
Tensile Strength Elongation at break Abrasion Cover to Ply Cover to Ply Ply to Ply
SANS1173 MPa % mm3 N/mm N/mm N/mm
SANS1173-A 18 400 70 5 5 7
SANS1173-C 20 400 150
SANS1173-M 25 450 120
SANS1173-N 17 400 150
