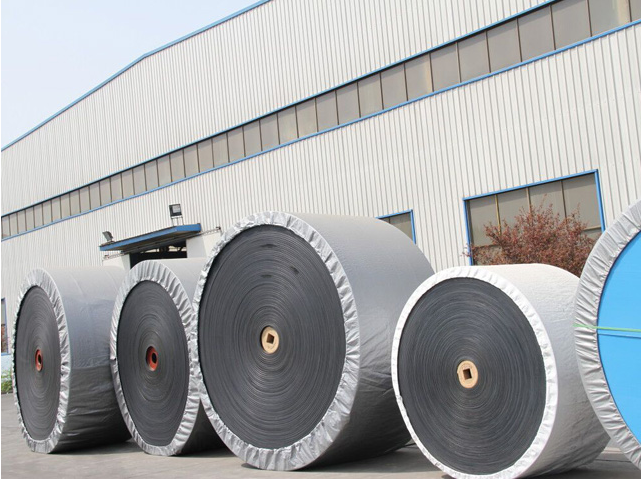

Multi Ply Rubber Conveyor Belt
Multi Ply rubber conveyor belt is widely used in mining, harbour, coal metallurgy chemical and else field for conveying materials. Normally use for short and middle distance transport. For bulk cargo also is a lower cost conveying method.
That belt is based on the rubber cover, the multi-ply conveyor belt can be use in different conditions, such as: oil resistant and fat resistant conveyor belt, acid conveyor belt and alkali conveyor belt, heat resistant conveyor belt, high temperature resistant conveyor belt, flame retardant conveyor belt, cold resistant conveyor belt and abrasion conveyor belt.
Strength Series
| Fabric type | Fabric structure | Fabric type | Strength series | Cover thickness | Width | Length | ||||||
| warp | weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | ||||
| Polyester(EP) | Polyester | Polyamide | EP-80 | 160 | 240 | 320 | 400 | 480 | 2-12 | 1-5 | 350-2200 | ≤300 |
| (E) | (P) | EP-100 | 200 | 300 | 400 | 500 | 600 | |||||
| EP-150 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-200 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1050 | 1400 | 1750 | 2100 | ||||||||
| EP-400 | 1600 | 2000 | 2400 | |||||||||
| EP-500 | 2000 | 2500 | 3000 | |||||||||
Standards
| Standards | Cover rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.5mm) | (>1.5mm) | |||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.9mm) | (>1.9mm) | |||||
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| RMA | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.6mm) | (>1.6mm) | |||||
| RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
| RMA-II | 14 | 400 | 3 | 4.4 | 4 | |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strengtd | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
| A | 18 | 400 | 70 | 5 | 7 | |
| C | 20 | 400 | 150 | 5 | 7 | |
| M | 25 | 450 | 120 | 5 | 7 | |
| N | 17 | 400 | 150 | 5 | 7 | |
