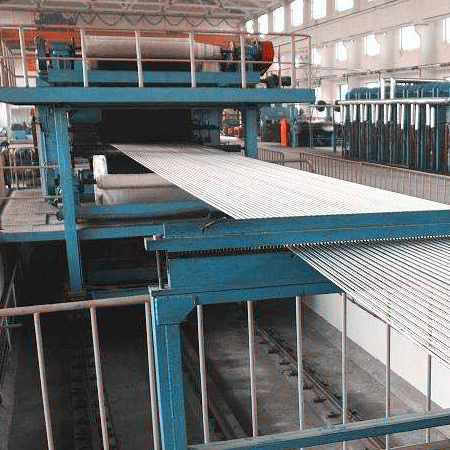

Steel Cord Conveyor Belt

Steel cord rubber conveyor belt is suitable for coal mines, mines, ports, electric power, metallurgy, building materials and other industries under the condition of anti-tearing material transport, can be used for long distance, large span, large volume and high speed material transport.

The belt is made up of core rubber, wire rope, cage cover layer and edge glue, with mildew proof, moth-proof, anti-aging, good heat resistance, high tear strength and belt surface can be refurbished after bad advantages. Features high tensile strength. Good impact resistance, long service life, small elongation, good slotting, good flexural resistance for long distance, large haul, high speed conveying materials.

Characteristic

  • High allowable strength and high safety factor;
  • The elongation is very small, the tensioning stroke distance is short;
  • Steel wire rope and rubber firmly combined, excellent dynamic performance;
  • The belt body is soft, good slotting, good linear running;
  • Excellent impact resistance;
  • The joint is reliable, long service life.

Adhesion of Steel Cord

Strength ST ST ST ST ST ST ST ST ST ST ST ST ST
600 800 1000 1250 1600 2000 2500 3150 4000 4500 5000 5400 6300
Adhesion N/mm 54 60 64 69 74 84 98 108 118
GB9770-88
Adhesion N/mm 60 70 80 95 105 105 130 140 145 150 165 175 180
DIN22131-88

steel wire core conveyor belt

Standard Specifications

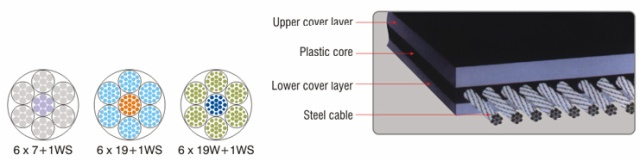

Belt strength Cord diam d（mm） Pitch P Standard working Standard rubber cover Belt weight Min.Pulley Cord strength
（st-No.） Cord structure （mm） tension（N/mm） thicknes t1t2（mm） （Kg/㎡） diam.（mm） KN/piece
ST-630 3 6*7+1WS 10 90 5*5 20 800 6.93
ST-800 3.5 6*7+1WS 10 110 5*5 20.6 800 8.8
ST-1000 4 6*7+1WS 12 140 6*6 24.7 800 13.2
ST-1250 4.5 6*7+1WS 12 175 6*6 25.4 800 16.5
ST-1600 5 6*19+1WS 12 225 6*6 26 1000 21.12
ST-2000 6 6*19+1WS 12 285 8*6 30 1000 26.4
ST-2500 7.5 6*19W+1WS 15 355 8*6 32.2 1250 41.25
ST-3150 8.1 6*19W+1WS 15 450 8*8 35.7 1400 51.98
ST-4000 9.1 6*19W+1WS 17 570 8*8 37.8 1600 74.8
ST-4500 9.7 6*19W+1WS 16 645 8*8 38.7 1800 79.2
ST-5000 10.9 6*19W+1WS 17 715 8.5*8.5 41.9 1800 93.5
ST-5400 11.3 6*19W+1WS 17 760 9*9 43.9 2000 101
ST-6300 12.3 6*19W+1WS 18 900 10*10 48.3 2000 124.74

Number of Steel Cords

Belt width（mm） ST ST ST ST ST ST ST ST ST ST ST ST ST
600 800 1000 1250 1600 2000 2500 3150 4000 4500 5000 5400 6300
800 75 75 63 63 63 63 50 50
1000 95 95 79 79 79 79 64 64 56 60 56 56 52
1200 113 113 94 94 94 94 76 76 68 72 68 68 63
1400 133 133 111 111 111 111 89 89 79 84 79 79 74
1600 151 151 126 126 126 126 101 101 91 96 91 91 85
1800 171 143 143 143 143 114 114 103 107 103 103 96
2000 159 159 159 159 128 128 114 120 114 114 107
2200 176 141 141 125 133 125 125 118
2400 193 155 155 137 146 137 137 129

Grades

Test items Property indexes
GB700-88 DIN22131-88
Class H Class M Class W Class X Class Y
Tensile strength Mpa≥ 17.65 13.73 18 25 20
Elongation at break %≥ 450 400 400 450 400
After aging % -25～+250 -25～+250 -25～+250 -25～+250 -25～+250
Change rate of tensile strength
Change rate of elongation
Abrasion ≤ 0.6cm3/1.61Km 0.8cm3/1.61Km 90cm3 120cm3 150cm3
